Perma

Dual Line System Pumps

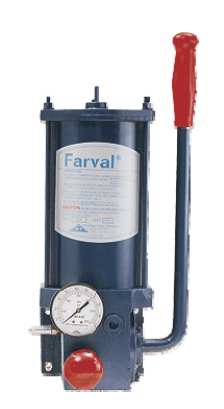

  • DA Series Lever pump for Dual Line
  • Steel Reservoir 2kg, 4kg, 6kg
  • Discharge 7.4cc
  • Pressure Gauge
  • Internal Grease Filters
  • Manually operated Changeover Valve
  • Low level indicator

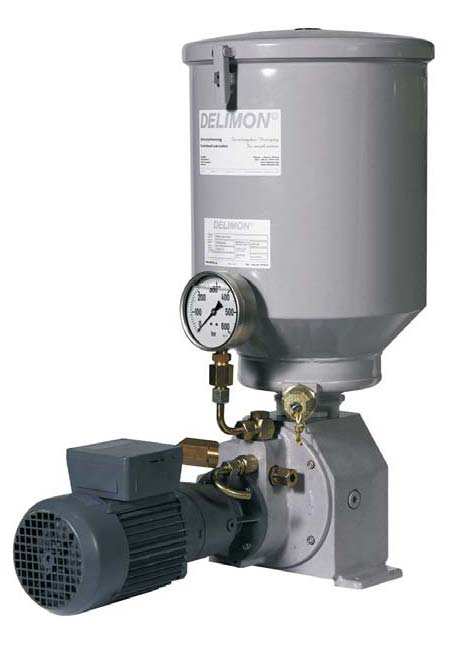

  • BMB pump for Dual Line
  • Steel Reservoir 8kg, 15kg, 30kg
  • Discharge 2 and 4LPH
  • Pressure Gauge
  • Internal Grease Filters
  • 400Bar with Adjustable Relief Valve
  • Ultrasonic Low Level Sensor
  • BSB pump for Dual Line
  • Steel Reservoir 60kg, 100KG
  • Discharge 7, 14, 21LPH
  • Pressure Gauge
  • Internal Grease Filters
  • 400Bar with Adjustable Relief Valve
  • Ultrasonic Low Level Sensor
Dual Line System Changeover Valves

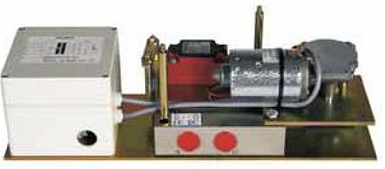

  • Electric Operated Changeover for Dual Line
  • 24vdc and 220vac Coils
  • Function 4/2 way
  • Working Pressure 400Bar

      Order Codes

  • 04-DA410AC      2kg
  • 04-DA510AC       4kg
  • 04-DA610AC       6kg

      Order Codes

  • 10-SAV11A00       110/220vac Coil
  • 10-SAV24A00       24vdc Coil
  • Hydraulic Operated Changeover for Dual Line
  • Adjustment Range 40 - 350Bar
  • Flow Rate 650cc/min
  • 2 Pressure Gauges
  • 1 Limit Switch
  • Mounting Bracket

      Order Codes

  • 10-DR402A0403
  • Hydraulic Operated Changeover for Dual Line
  • Adjustment Range 40 - 240Bar
  • 2 Pressure Gauges
  • 1 Limit Switch
  • Mounting Bracket
  • Grease Filter

      Order Codes

  • 04-DR45         Bare Valve
  • 04-DR45K       Valve + Limit Switch + Gauges
  • 04-DR460A     Valve + Limit Switch + Gauge + Filter
  •                          + Mounting Bracket
  • Hydraulic Operated Changeover for Dual Line
  • Adjustment Range 20 - 250/350Bar
  • Cycle Switch Options

      Order Codes

  • 10-SAK25A00       Bare Valve 250Bar
  • 10-SAK25A01       Valve 250Bar + Limit Switch
  • 10-SAK25A02       Valve 250Bar + 2 x PNP Monitoring SW
  • 10-SAK35A00       Bare Valve 350Bar
  • 10-SAK35A01       Valve 350Bar + Limit Switch
  • 10-SAK35A02       Valve 350Bar + 2 x PNP Switches

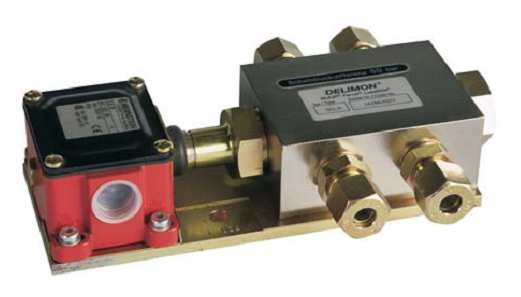

Dual Line System Differential Pressure Switch
  • Hydraulic Operated Limit Switch
  • 2 Differential Pressure Options
  • Rated to 400Bar

      Order Codes

  • 10-SGA05A00        50Bar  Pressure Differential
  • 10-SGA10A00        100Bar Pressure Differential
Dual Line System Distributors

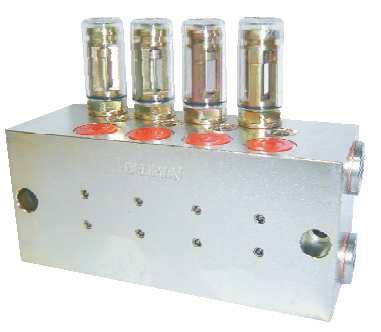

  • ZVB Model
  • Displacements 0.5,  1.5,   3.0cc
  • Outlets 1-8
  • With Adjustable Motion Indicators
  • Rated to 400Bar



       Flanged version of the ZVB available

       Model 10-ZVF

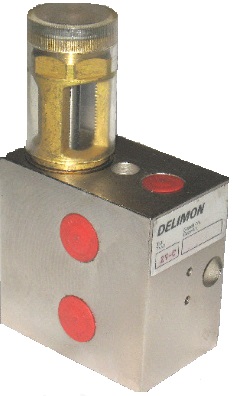

  • ZVC Model
  • Displacement   15cc
  • Outlets 1-4
  • With Adjustable Motion Indicators
  • Rated to 400Bar













  • DDU Model
  • Displacement   3.5cc
  • Outlets 1-8
  • With Adjustable Motion Indicators
  • Rated to 350Bar

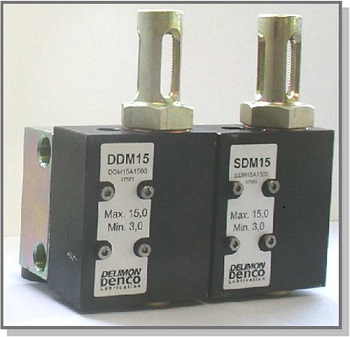

  • DDM / SDM Models
  • Displacements   1cc  5cc  15cc
  • Manifold Mounted
  • With Adjustable Motion Indicators
  • Rated to 350Bar













DDM15  15cc

SDM15   30cc



DDM = Double Outlet Valve

SDM = Single Outlet Valve

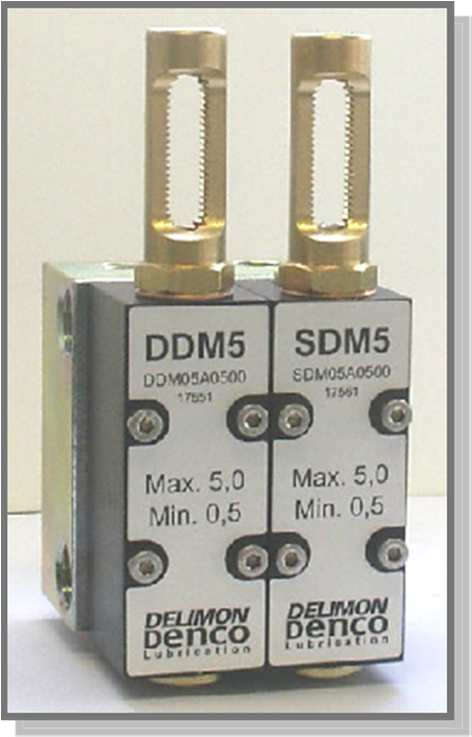

DDM5  5cc

SDM5  10cc

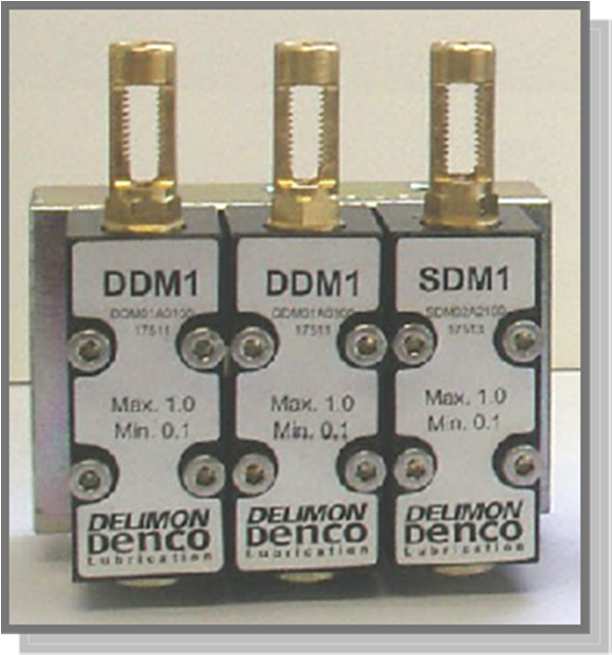

DDM1  1cc

SDM1   2cc

Dual Line System Controllers

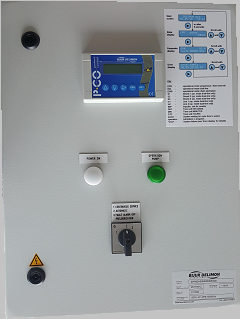

  • PcO Models
  • Full control of all Dual Line System inputs
  • Electric and Hydraulic Changeover valves
  • Voltages 110VAC 1 Phase to 500vac  3 Phase
  • Monitoring Ultrasonic Low Level Sensor
  • Auto Grease refill controls
  • Alarm Outputs
  •

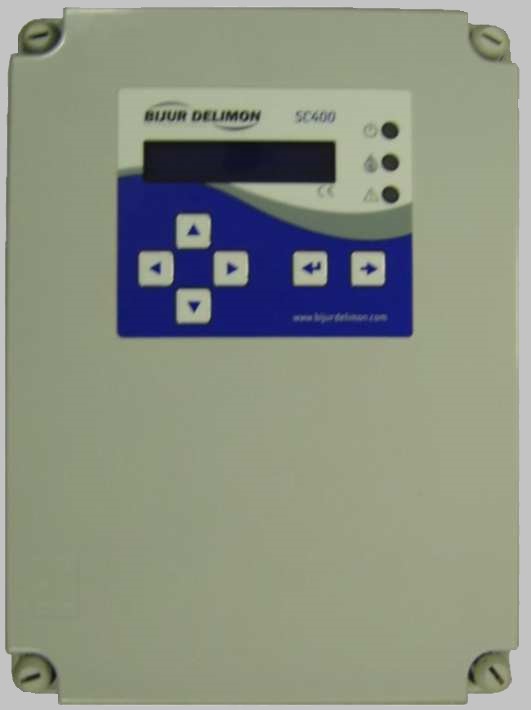

  • SC400 Model
  • Full control of all Dual Line System inputs
  • Electric and Hydraulic Changeover valves
  • Voltages 220/ 110VAC 1 Phase
  • Monitoring Ultrasonic Low Level Sensor
  • Auto Grease refill controls
  • Zoning, Option
  • Alarm Outputs













Dual Line
Text (double-click to edit)

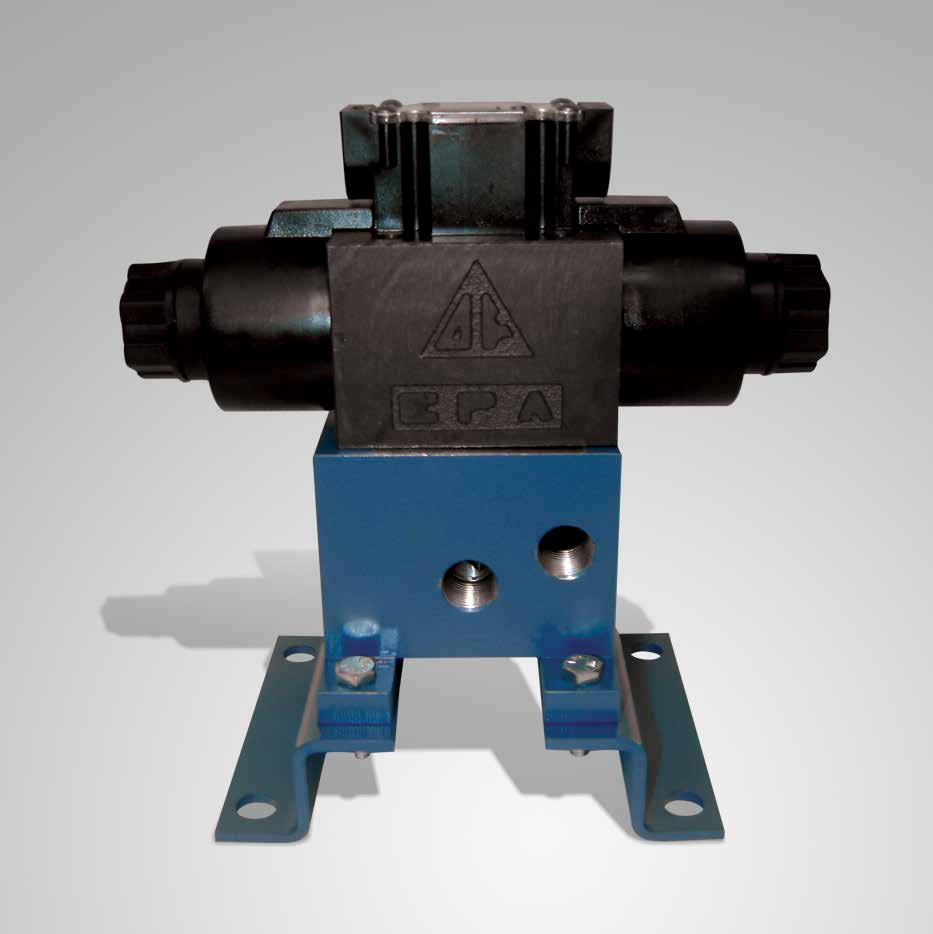

  • Electric Operated Changeover for Dual Line
  • 24vdc and 110/220vac Coils
  • Function 4/2 way
  • Working Pressure 350Bar

      Order Codes

  • 04-37149xxxxx
  • x code voltage and accessories
